Rescue

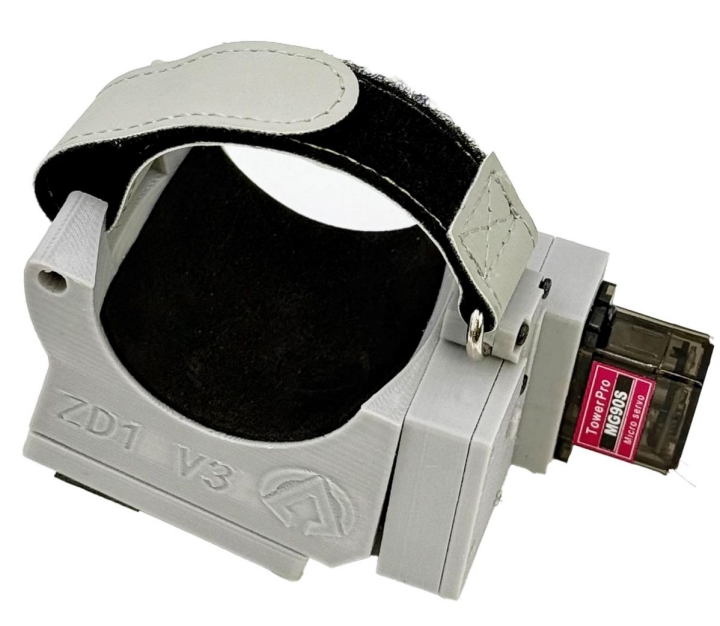

Compact Single-Channel Release
Lightweight release module for small rescue supplies, markers, and field accessories.
- Size
- 50 x 50 x 70 mm
- Signal
- PWM / light signal
- Weight
- 50g
Civil UAV Delivery Equipment
Payload release systems for rescue, inspection, and field logistics.
Modular UAV-mounted mechanisms for first aid kits, emergency supplies, inspection tools, and industrial payloads. Built for quick integration with small and heavy-lift drone platforms.
5V to 28V
Flexible power options
PWM / Light Signal
Common drone control inputs
24 Photo Products
Original-photo product selection for public display
30kg to 50kg
Magnetic payload capacity range
Product Line
Civil payload solutions for different missions
Select compact release modules for light supplies, multi-unit systems for emergency kits, or high-capacity magnetic release systems for industrial payload work.
Industrial

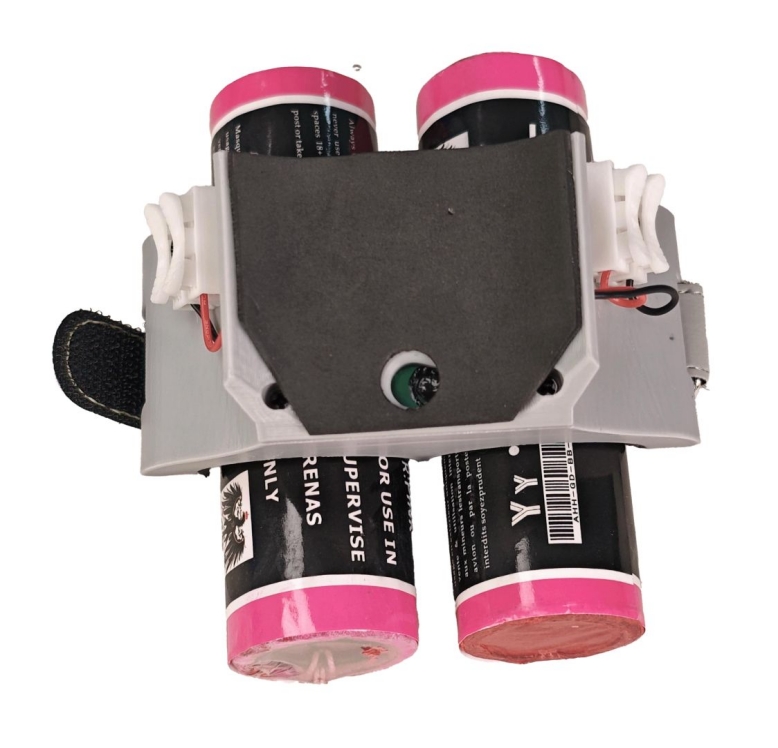

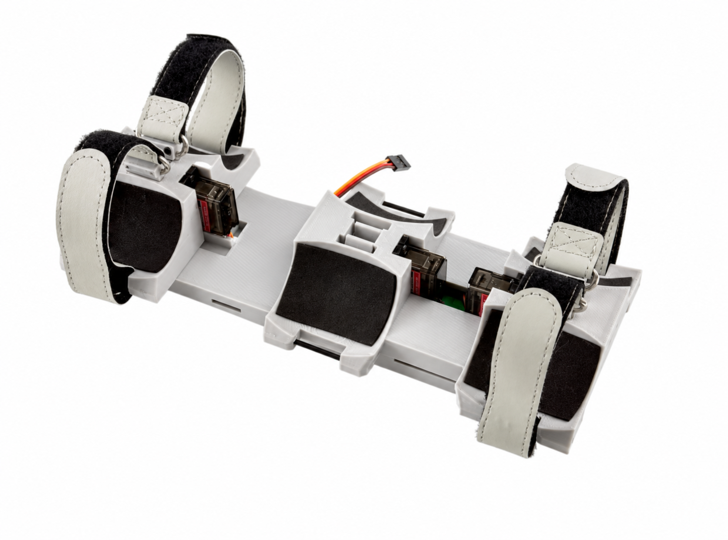

Six-Channel Release Array
Multi-drop configuration for route-based delivery of small civil payloads.
- Size
- 230 x 94 x 48 mm
- Power
- 7-28V
- Weight
- 300g
Industrial

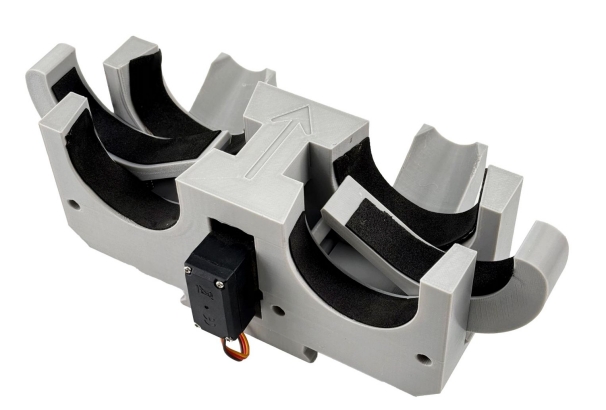

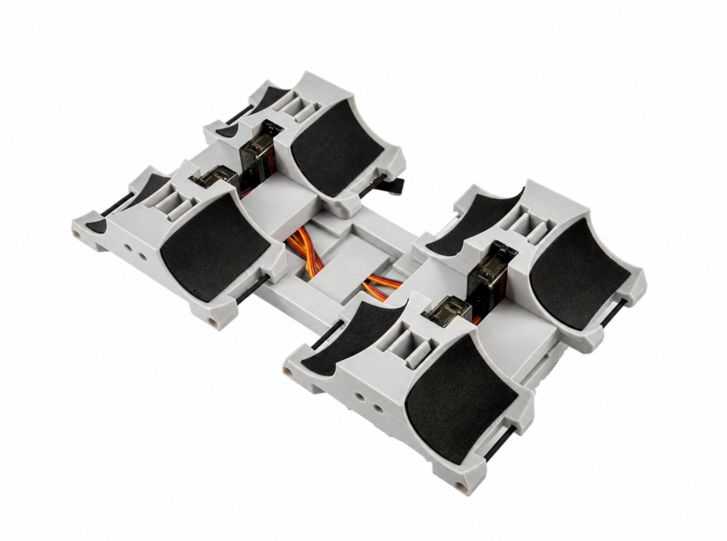

Eight-Channel Release Array
High-count release layout for multiple supplies, sample containers, or sensor pods.
- Size
- 225 x 130 x 48 mm
- Signal
- PWM
- Weight
- 350g
Integration

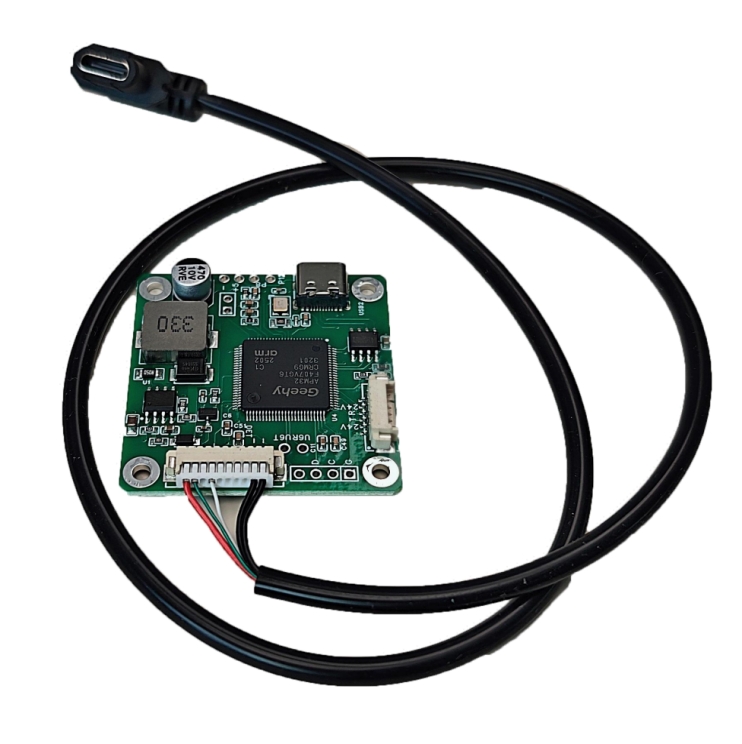

PSDK Control Board
Signal conversion board for two-way PWM output and serial communication.
- Input
- PSDK signal
- Output
- 2-way PWM + serial
- MOQ
- 5 units
Integration
Five-Channel Rotary Release
Sequential rotary release system for one-by-one placement of compact field payloads.
- Size
- 176 x 39 x 155 mm
- Power
- 5V
- Weight
- 500g
Integration
Quick-Release Mounting Module
Detachable mounting hardware for fast payload swaps and field maintenance.
- Power
- 5V
- Signal
- PWM / quick release
- Use
- Modular integration
Rescue

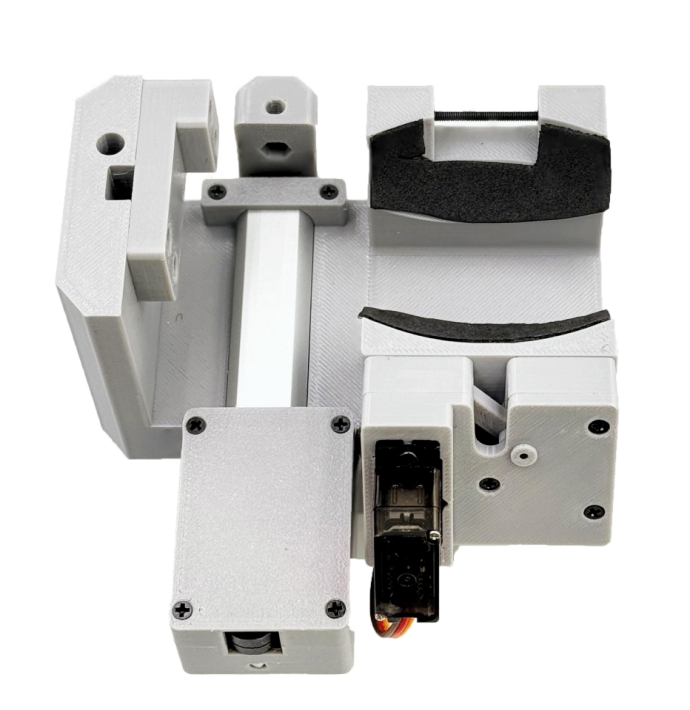

Medium Single-Channel Release
Single-position release for larger rescue packs and compact field supply containers.
- Size
- 112 x 65 x 79 mm
- Power
- 5V
- Weight
- 122g
Rescue

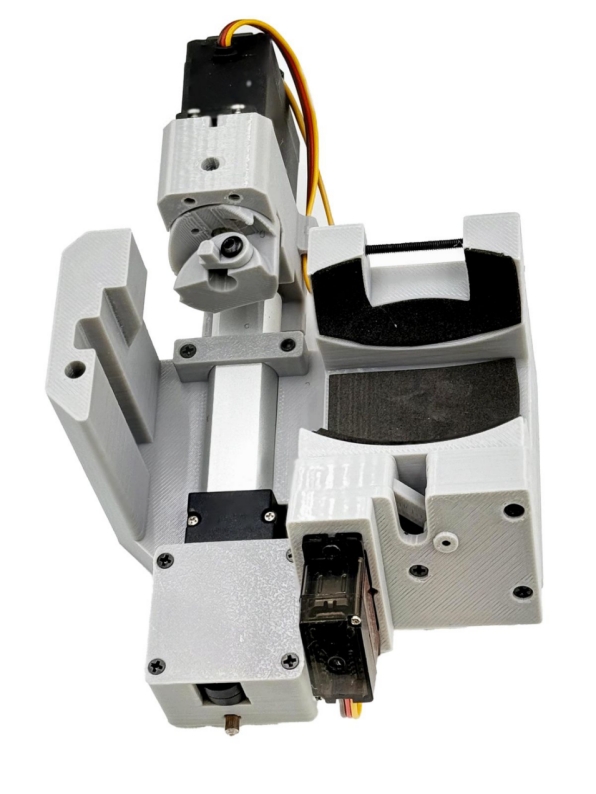

Light Signal Single-Channel Release
Compact unit supporting PWM and optical triggering for small UAV supply drops.
- Size
- 48 x 48 x 88 mm
- Signal
- PWM / light signal
- Weight
- 72g
Rescue

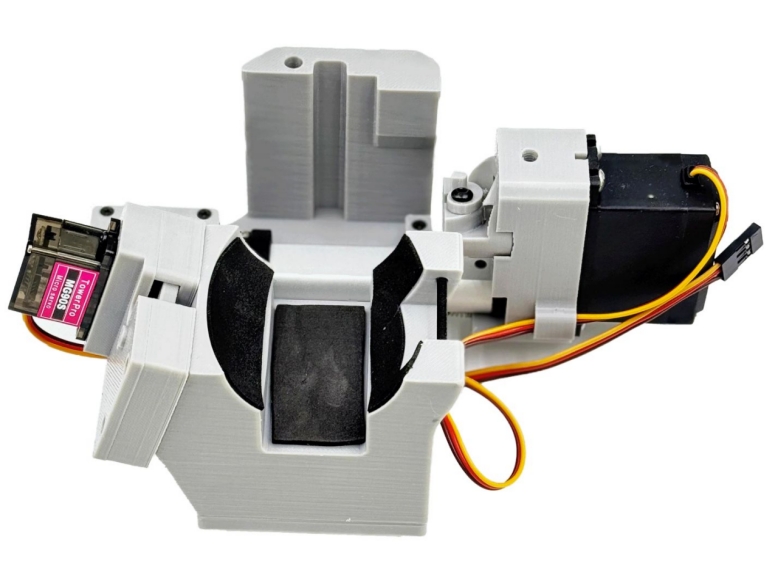

Dual-Channel Marker Signal Module
Two-output module for civil marking, location signaling, and emergency indication tasks.
- Size
- 48 x 73 x 110 mm
- Power
- 5V
- Weight
- 80g
Industrial

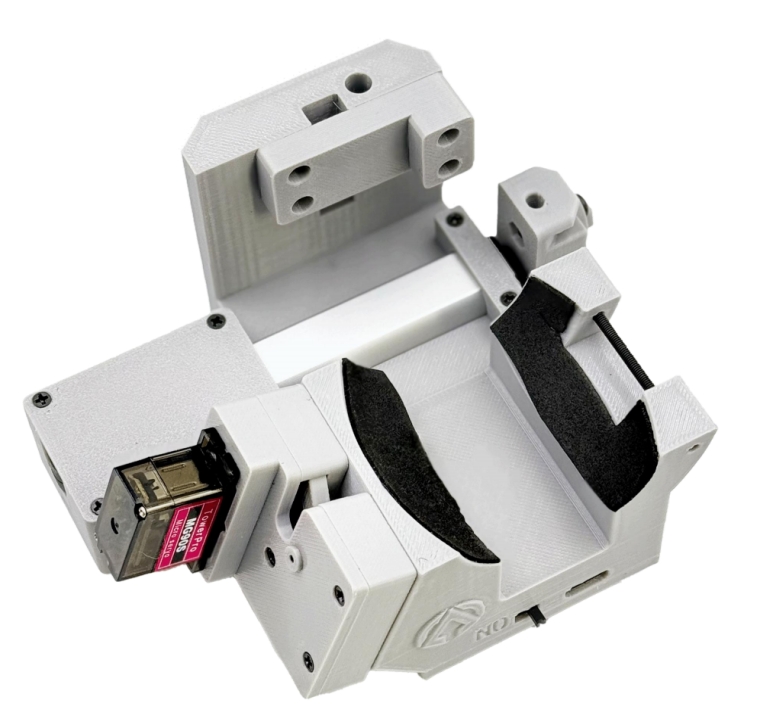

Medium-Duty Dual Release
Dual-position module for heavier civil supply containers and equipment pods.
- Size
- 120 x 86 x 66 mm
- Power
- 7-28V
- Weight
- 200g
Industrial
Medium-Duty Single Release
Single-position heavy UAV release for civil payload modules and field containers.
- Size
- 99 x 94 x 88 mm
- Power
- 7-28V
- Weight
- 240g
Industrial
Extended Dual Release
Long-format dual release system for balanced payload placement on larger UAVs.
- Size
- 200 x 88 x 98 mm
- Power
- 7-28V
- Weight
- 400g
Industrial
Three-Channel Heavy Release
Three-point release platform for larger emergency and industrial payload layouts.
- Size
- 280 x 95 x 83 mm
- Power
- 7-28V
- Weight
- 660g
Industrial

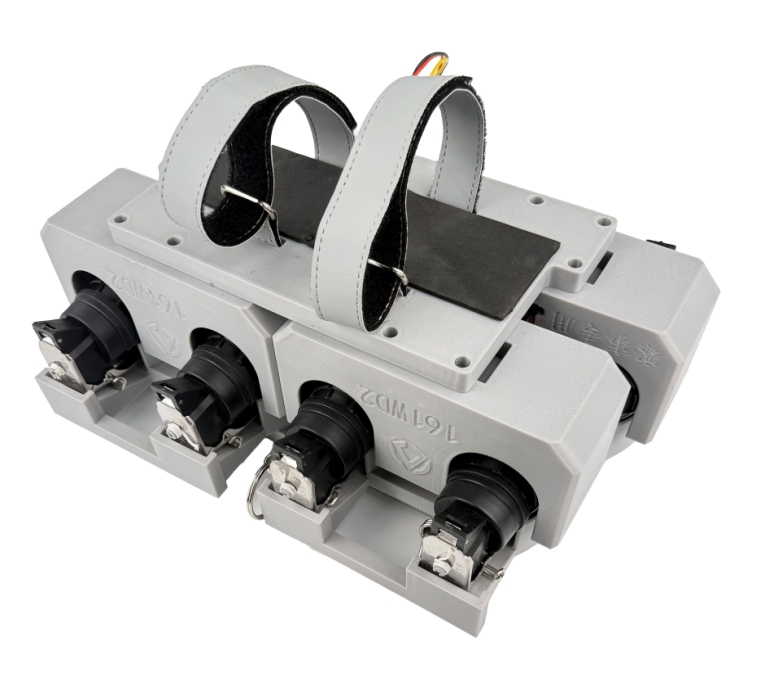

High-Force Utility Release - 2 Unit
Dual high-pull configuration for paired mechanical payload retention points.
- Channels
- 2 release points
- Signal
- PWM / light signal
- Use
- Secure retention
Industrial
Pull-Ring Utility Release - 1 Unit
Single pull-ring style release for equipment, sample cases, and field devices.
- Size
- 124 x 79 x 60 mm
- Power
- 5V, current >= 2A
- Weight
- 200g
Industrial
Pull-Ring Utility Release - 2 Unit
Dual pull-ring configuration for paired equipment or supply package release.
- Size
- 124 x 79 x 60 mm
- Signal
- PWM / light signal
- Weight
- 200g
Rescue
Pin-Style Release - 2 Unit
Two-unit release hardware for compact rescue supplies and detachable markers.
- Size
- 158 x 48 x 44 mm
- Power
- 5V
- Weight
- 110g-125g
Rescue
Pin-Style Release - 4 Unit
Four-unit version for multi-point release of compact civil supply packs.
- Size
- 282 x 46 x 47 mm
- Signal
- PWM / light signal
- Weight
- 240g
Industrial

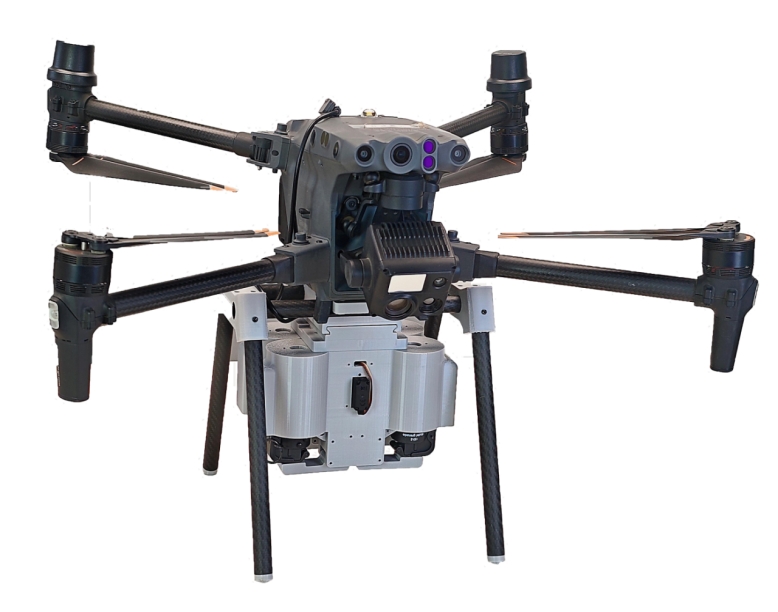

Multi-Channel Utility Platform A
Configurable 2 to 8 channel platform for heavy-lift UAV payload workflows.
- Options
- 2 / 4 / 6 / 8 channel
- Power
- 7-28V
- Weight
- 140g to 600g
Industrial
Multi-Channel Utility Platform B
Compact multi-channel platform with detachable mounting support.
- Options
- 2 / 4 / 6 / 8 channel
- Power
- 5V
- Weight
- 160g to 820g
Industrial

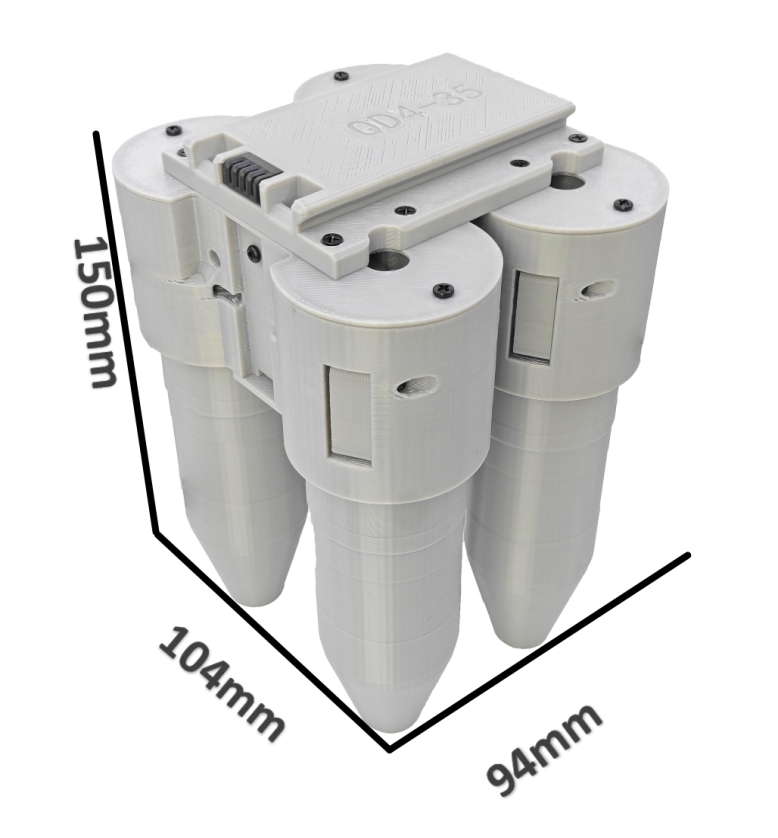

Field Marker Multi-Channel Platform
Large-format 2 to 8 channel carrier for visible markers and civil field devices.
- Options
- 2 / 4 / 6 / 8 channel
- Signal
- PWM / optical / remote
- Weight
- 300g to 1200g
Industrial

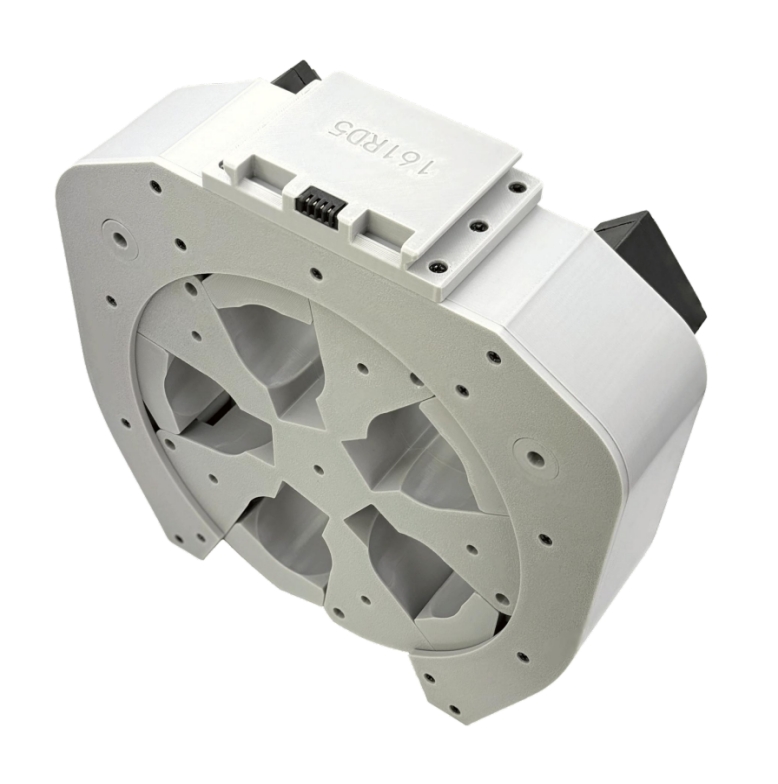

Medium Vertical Payload Rack
Vertical rack system for heavy-lift UAV payload placement and staged delivery.
- Options
- 2 / 4 / 6 / 8 channel
- Power
- 5V 4A
- Weight
- 500g to 2kg
Integration
Heavy Rotary Release System
Five-position rotary module for sequential release of compact civil payloads.
- Size
- 272 x 57 x 200 mm
- Power
- 5V, current >= 5A
- Weight
- 873g
Integration
Release System Safety Module
Independent control module for emergency separation of a stuck payload assembly.
- Size
- 50 x 30 x 57 mm
- Power
- 5V
- Weight
- 60g
Applications
Made for practical civil missions
Emergency response
Deliver first aid kits, communication beacons, and light rescue supplies.
Industrial inspection
Place tools, markers, samples, and sensors in hard-to-access locations.
Agriculture and forestry
Support controlled delivery of lightweight field supplies and monitoring devices.
Custom integration
Adapt control signals, mounting plates, and release layouts to your UAV platform.
Specifications
Quick comparison
| Model | Use | Dimensions | Voltage | Signal | Weight |
|---|---|---|---|---|---|
| Compact Single-Channel Release | Light supply delivery | 50 x 50 x 70 mm | 5V | PWM / light | 50g |
| Six-Channel Release Array | Route-based delivery | 230 x 94 x 48 mm | 7-28V | PWM | 300g |
| Eight-Channel Release Array | High-count delivery | 225 x 130 x 48 mm | 7-28V | PWM | 350g |
| PSDK Control Board | Signal conversion | Compact PCB | Platform power | PSDK to PWM / serial | Custom |
| Five-Channel Rotary Release | Sequential placement | 176 x 39 x 155 mm | 5V | PWM / quick release | 500g |
| Quick-Release Mounting Module | Modular integration | Custom | 5V | PWM / quick release | Custom |
| Medium Single-Channel Release | Larger supply pack | 112 x 65 x 79 mm | 5V | PWM | 122g |
| Light Signal Single-Channel Release | Small supply delivery | 48 x 48 x 88 mm | 5V | PWM / light | 72g |
| Dual-Channel Marker Signal Module | Emergency indication | 48 x 73 x 110 mm | 5V | PWM / light | 80g |
| Medium-Duty Dual Release | Heavier civil payloads | 120 x 86 x 66 mm | 7-28V | PWM | 200g |
| Medium-Duty Single Release | Single heavy module | 99 x 94 x 88 mm | 7-28V | PWM | 240g |
| Extended Dual Release | Balanced payload layout | 200 x 88 x 98 mm | 7-28V | PWM | 400g |
| Three-Channel Heavy Release | Large UAV delivery | 280 x 95 x 83 mm | 7-28V | PWM | 660g |
| High-Force Utility Release - 2 Unit | Paired retention | Custom | 5V | PWM / light | Custom |
| Pull-Ring Utility Release - 1 Unit | Equipment release | 124 x 79 x 60 mm | 5V | PWM / optical | 200g |
| Pull-Ring Utility Release - 2 Unit | Paired equipment release | 124 x 79 x 60 mm | 5V | PWM / light | 200g |
| Pin-Style Release - 2 Unit | Compact supply packs | 158 x 48 x 44 mm | 5V | PWM / light | 110g-125g |
| Pin-Style Release - 4 Unit | Multi-pack delivery | 282 x 46 x 47 mm | 5V | PWM / light | 240g |
| Multi-Channel Utility Platform A | Heavy-lift workflows | Configurable | 7-28V | PWM / remote | 140g to 600g |
| Multi-Channel Utility Platform B | Detachable mounting | Configurable | 5V | PWM / remote | 160g to 820g |
| Field Marker Multi-Channel Platform | Visible field devices | Configurable | 5V | PWM / optical / remote | 300g to 1200g |
| Medium Vertical Payload Rack | Vertical payload layout | Configurable | 5V 4A | PWM | 500g to 2kg |
| Heavy Rotary Release System | Sequential placement | 272 x 57 x 200 mm | 5V | PWM / quick release | 873g |
| Release System Safety Module | Emergency separation | 50 x 30 x 57 mm | 5V | Independent control | 60g |
RFQ
Send your drone model and payload requirement.
We can recommend the mounting base, signal method, release count, and production configuration for your civil UAV application.
- OEM and ODM configuration support
- Small-batch trial orders available
- Export-ready packaging and documentation
