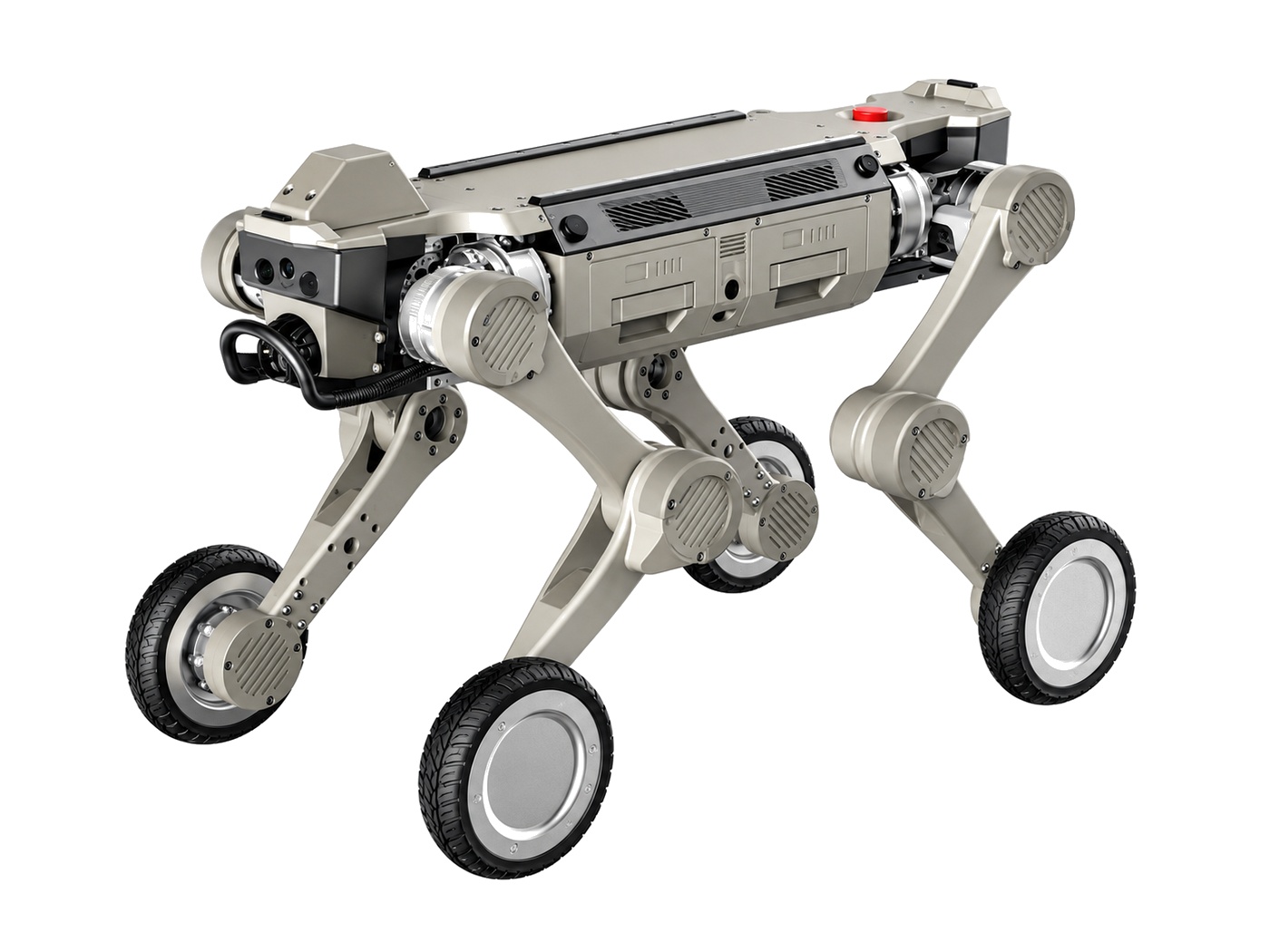

Tongchui M1 Ultra Vision Robot

An all-round perception platform built on the complete M1 Pro hardware configuration. M1 Ultra replaces the front and rear cameras with fisheye units, adds left and right fisheye cameras for 360-degree surround imaging, and integrates a front stereo camera for depth perception and accurate recognition.

Tongchui M1 Ultra

Technical Specifications

Base Capabilities: Includes all Tongchui M1 Pro hardware configurations; view M1 Pro specifications
Standing Dimensions: 930 x 480 x 620 mm
Weight: 41 kg
Vision Sensors: Front, rear, left, and right fisheye cameras plus a front stereo camera
Storage: 512 GB TF card
Ultra Software Functions: Surround imaging, voice intercom, recording and broadcast, UWB following, laser-vision following, local video storage and export, stealth mode, and remote wakeup
Stable Payload: 30 kg
Battery: 18.7 Ah, 54 V
Degrees of Freedom: 16 total; 3+1 per wheel-leg
Runtime: At least 5 h unloaded; at least 3.5 h at full load
Maximum Speed: 8 m/s
Standard Maximum Speed: 6 m/s
Maximum Slope: ±45°
Maximum Obstacle Height: 80 cm
Barrier Crossing: At least 50 cm high; barrier thickness up to 10 cm
Maximum Stair Height: 25 cm
Auxiliary Power: 5 V, 12 V, 24 V, and 48 V; at least 480 W
Battery System: Dual batteries with quick-swap and hot-swap support; no shutdown required
Communication Interfaces: 2 x Gigabit Ethernet, 2 x USB 3.0, and 1 x serial port
Protection Modes: Software and hardware emergency stop; low-battery and over-temperature alarms
Motion & Terrain: Stepping, rolling, crawling, multidirectional travel, and in-place rotation across gravel, asphalt, grass, sand, forest floor, and building rubble
Disturbance Recovery: Active balance under impact; automatic stand-up or protected fault state after a fall
Charging: Manual and automatic charging supported
Direction Switching: Front/rear operation, bidirectional vision, and in-place turnaround
Environment: -20°C to 55°C; IP67 protection
LiDAR: Front and rear 96-line units; 360° horizontal x 90° vertical FOV; at least 120 m coverage diameter
RTK Module: GNSS RTK for real-time robot positioning
Ultrasonic Sensors: Left and right obstacle sensing up to 3.5 m
Wireless Communication: Wi-Fi, Bluetooth, and RF; 500 to 1,000 m RF range

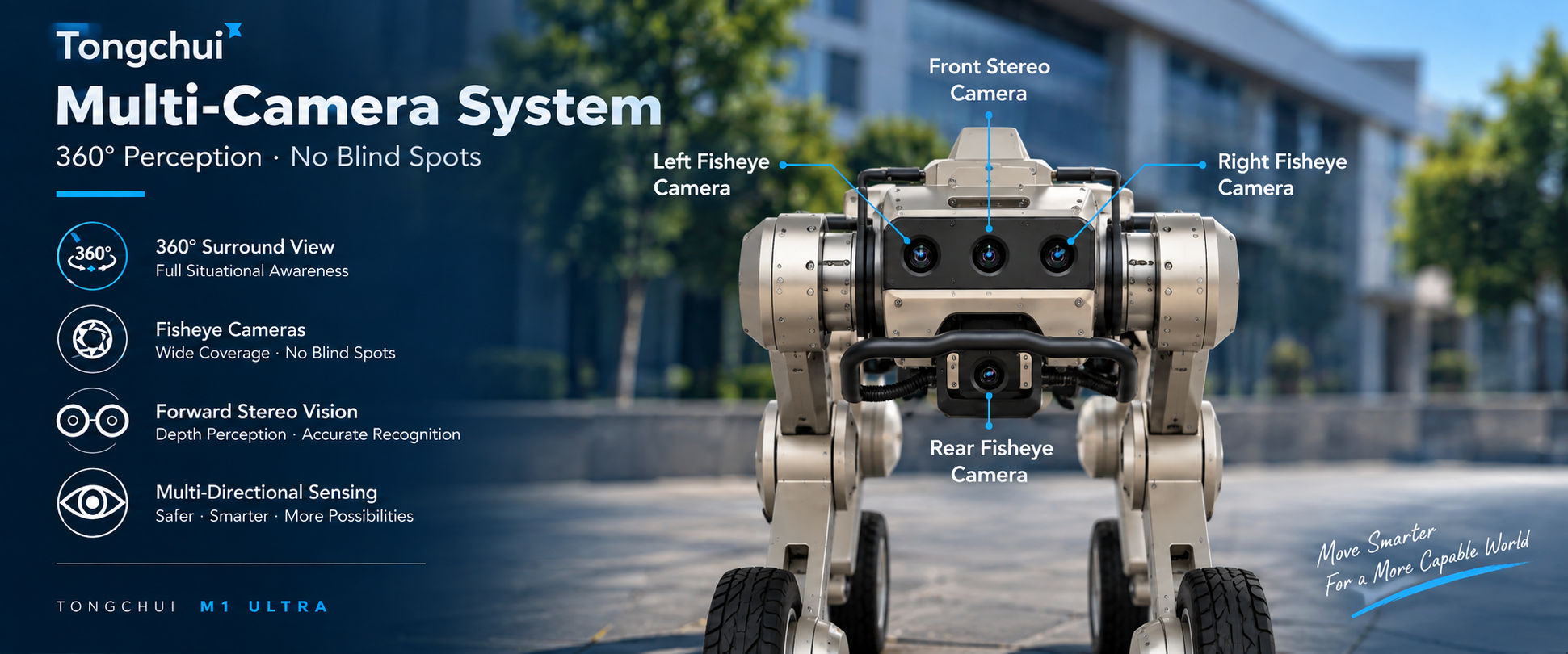

Tongchui M1 Ultra four-fisheye and front stereo camera system

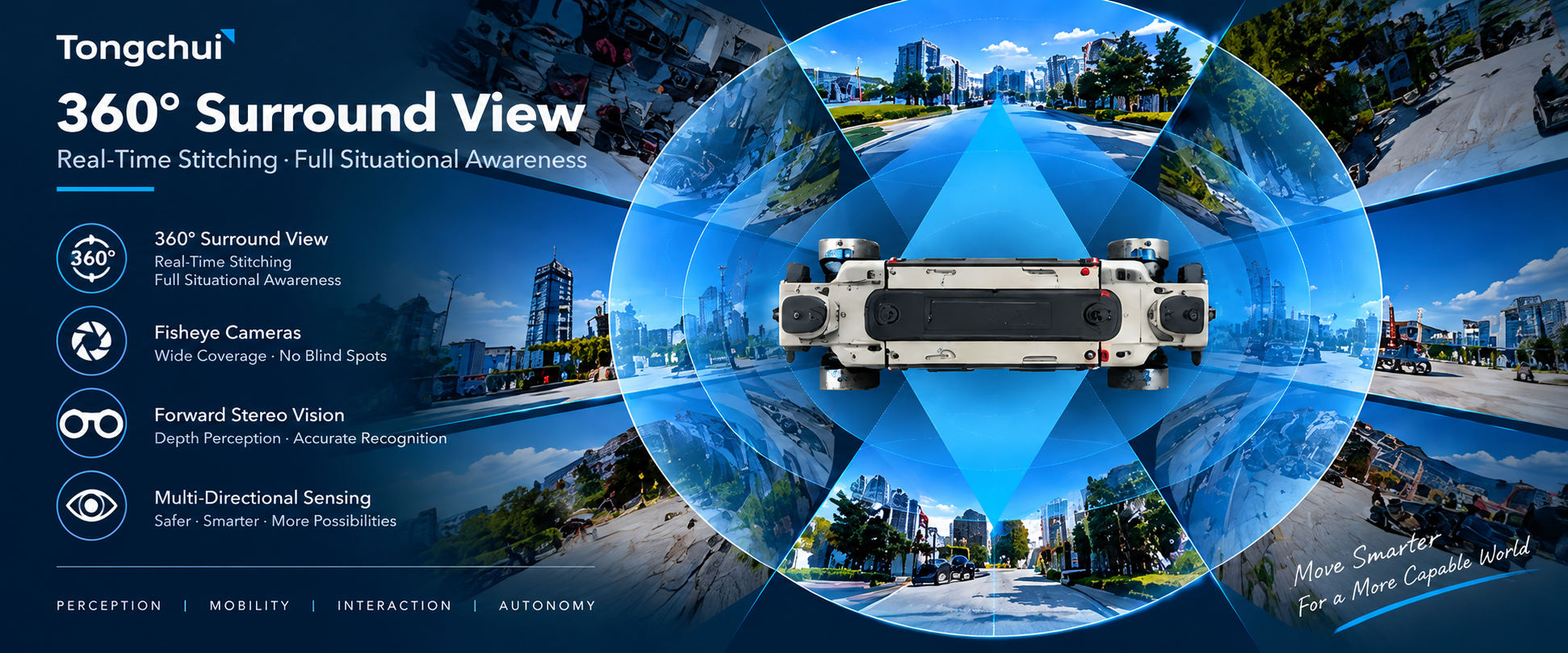

Tongchui M1 Ultra 360-degree surround view imaging

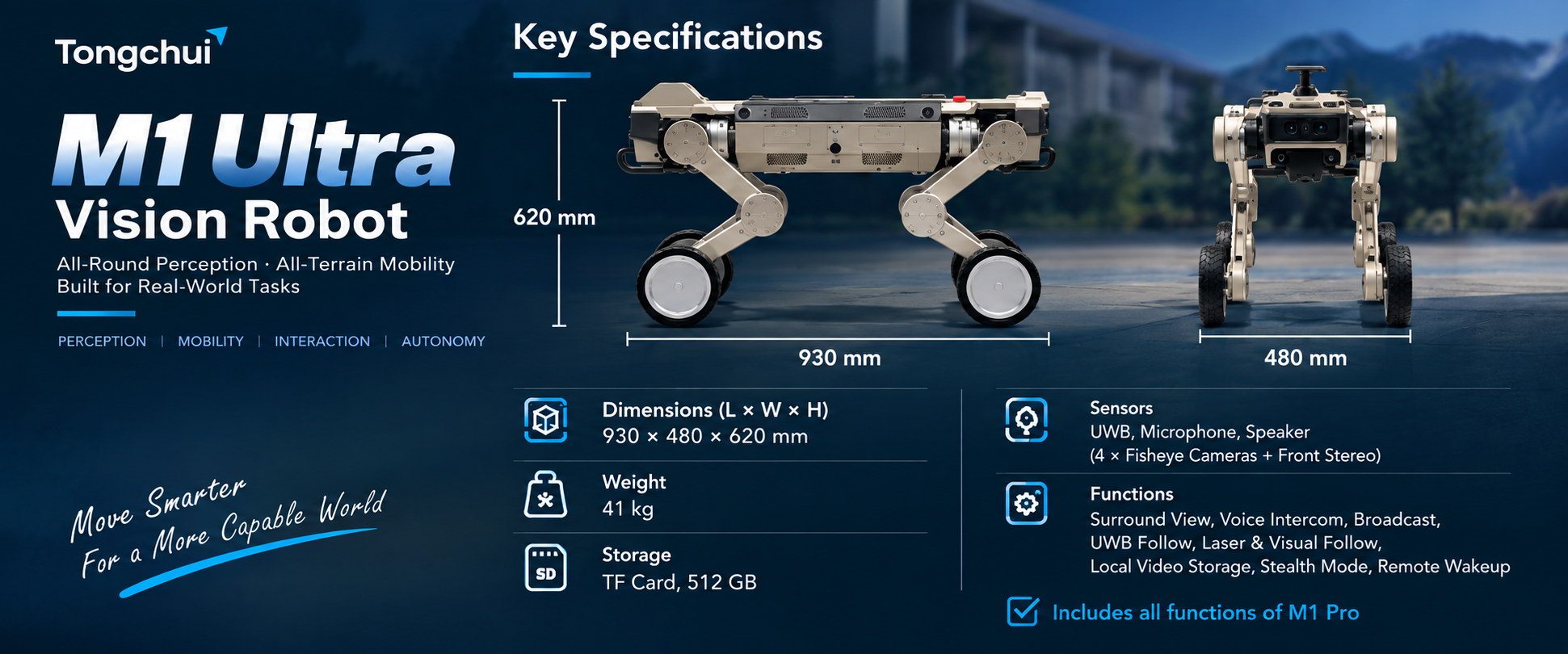

Tongchui M1 Ultra dimensions, weight, storage, sensors, and functions
