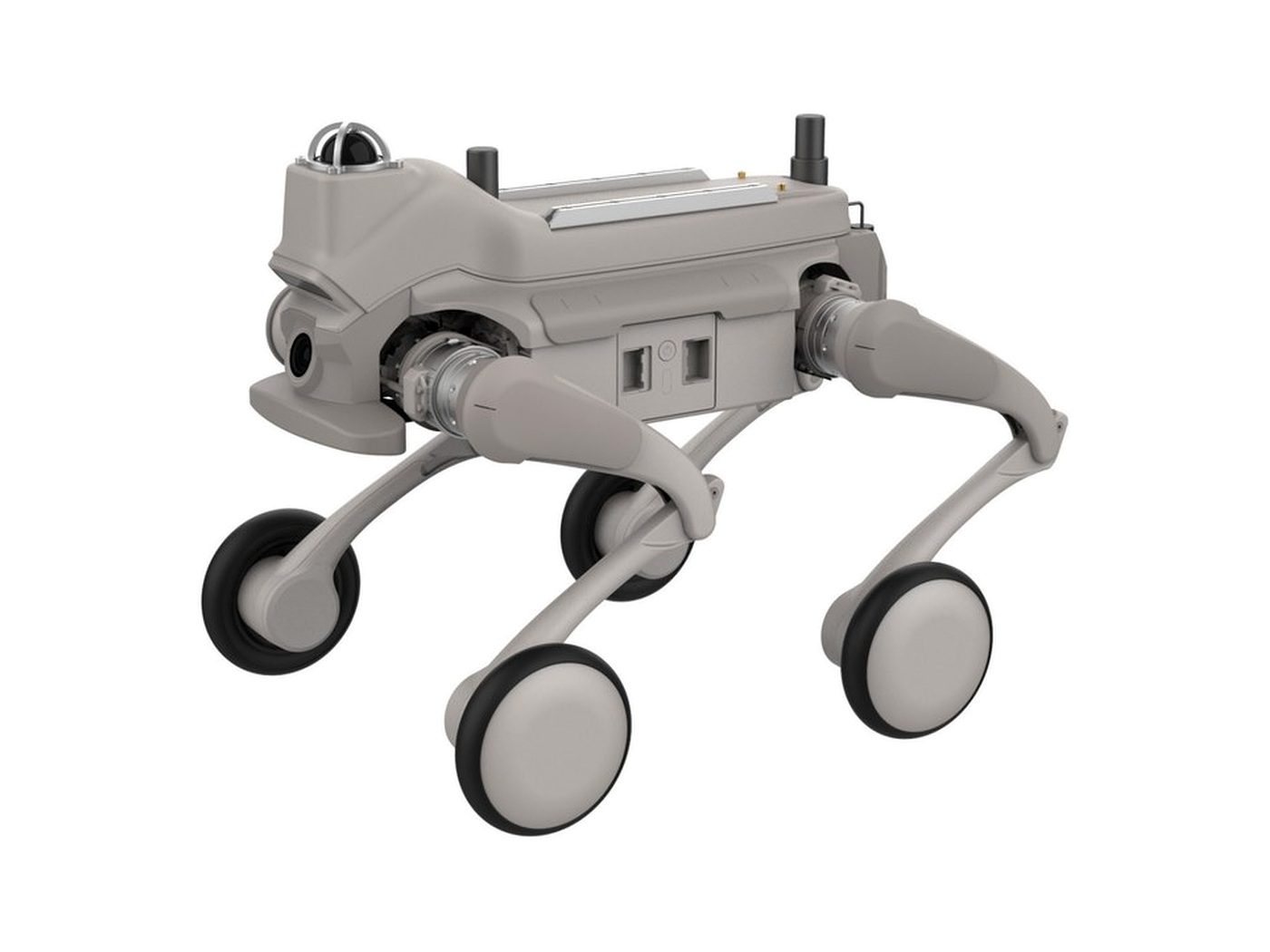

Gangbeng L1-W EDU Development Robot

An open, modular wheeled quadruped developer platform for embodied AI, autonomous navigation, mapping, education, and robotics research. The L1-W EDU combines agile wheel-leg mobility with high-performance edge computing, LiDAR, depth vision, precision positioning, 5G connectivity, and integrated robotics software.

Gangbeng L1-W EDU

Development Configuration

Computing Platform: Jetson Orin NX 16G
LiDAR: Mid 360 LiDAR
Depth Camera: Intel RealSense depth camera
Positioning Module: GNSS positioning module
Communication Module: 5G communication module
RTK: RTK antenna
Functional Interfaces: Gigabit Ethernet, power, SBUS + RS485, USB 3.0 for Orin NX, and USB 3.0 for RK3588
Software Package: Zhihang RoamerX Lite

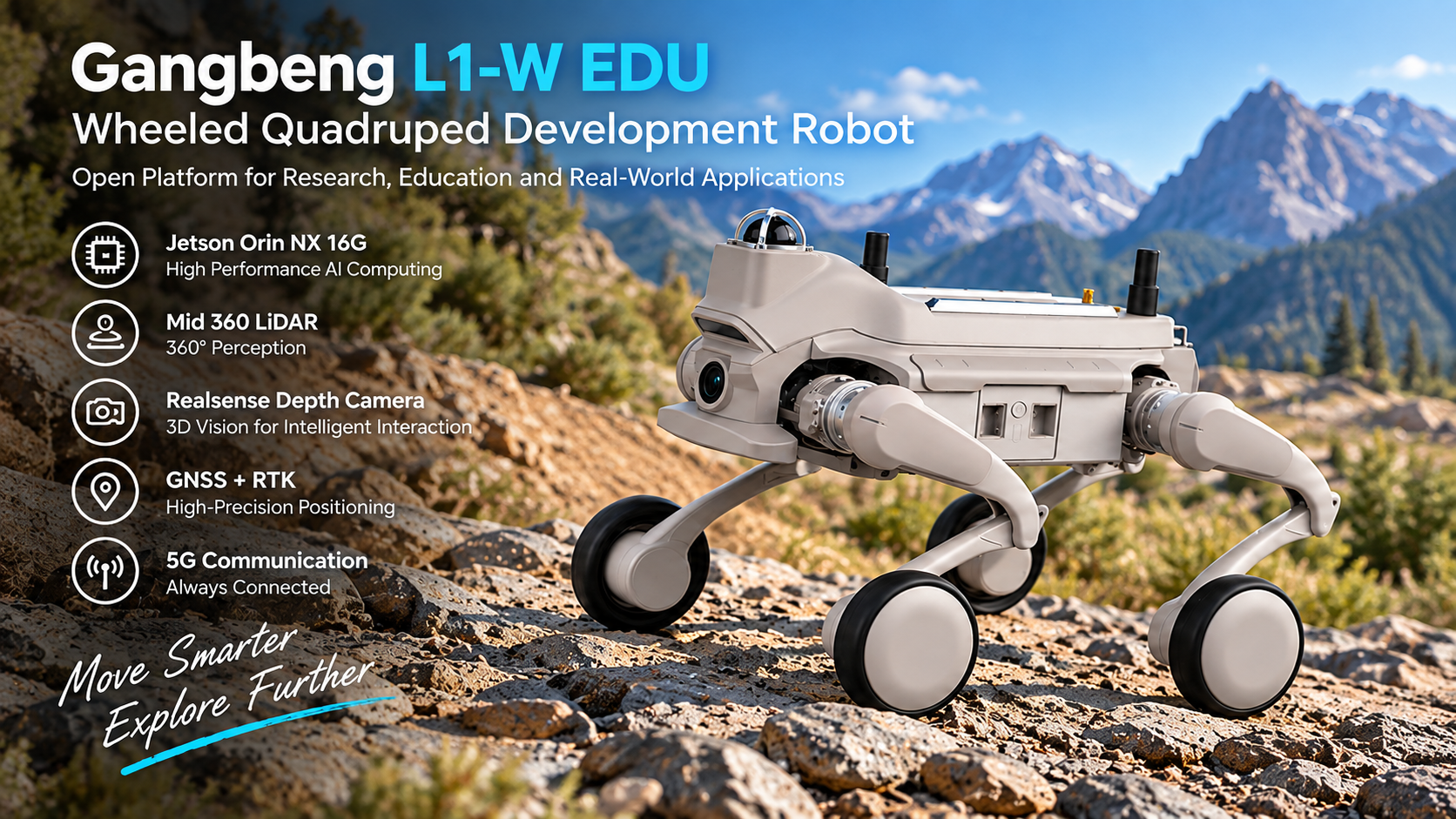

Gangbeng L1-W EDU wheeled quadruped developer platform overview

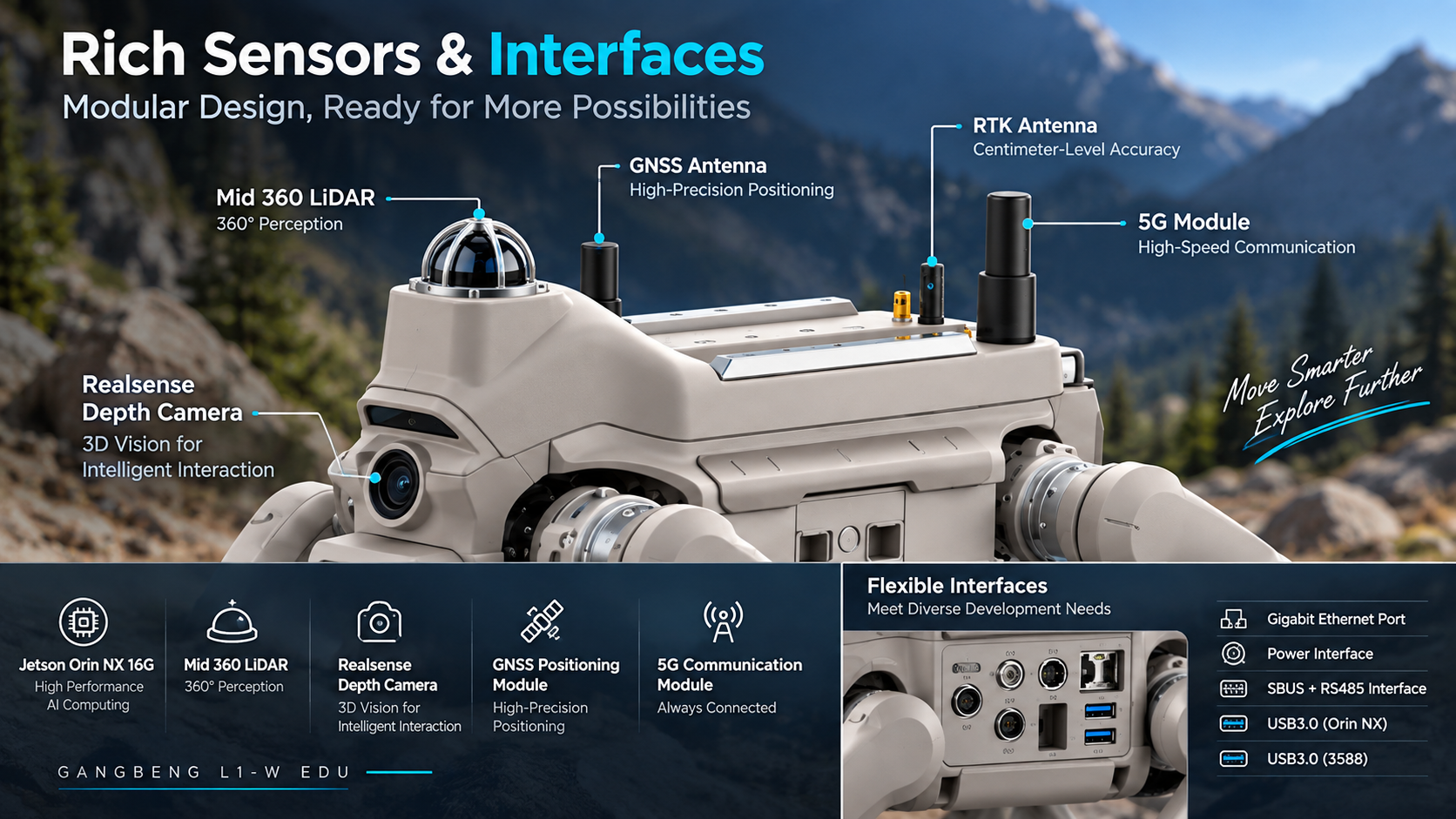

Gangbeng L1-W EDU sensors, positioning modules, communication, and interfaces

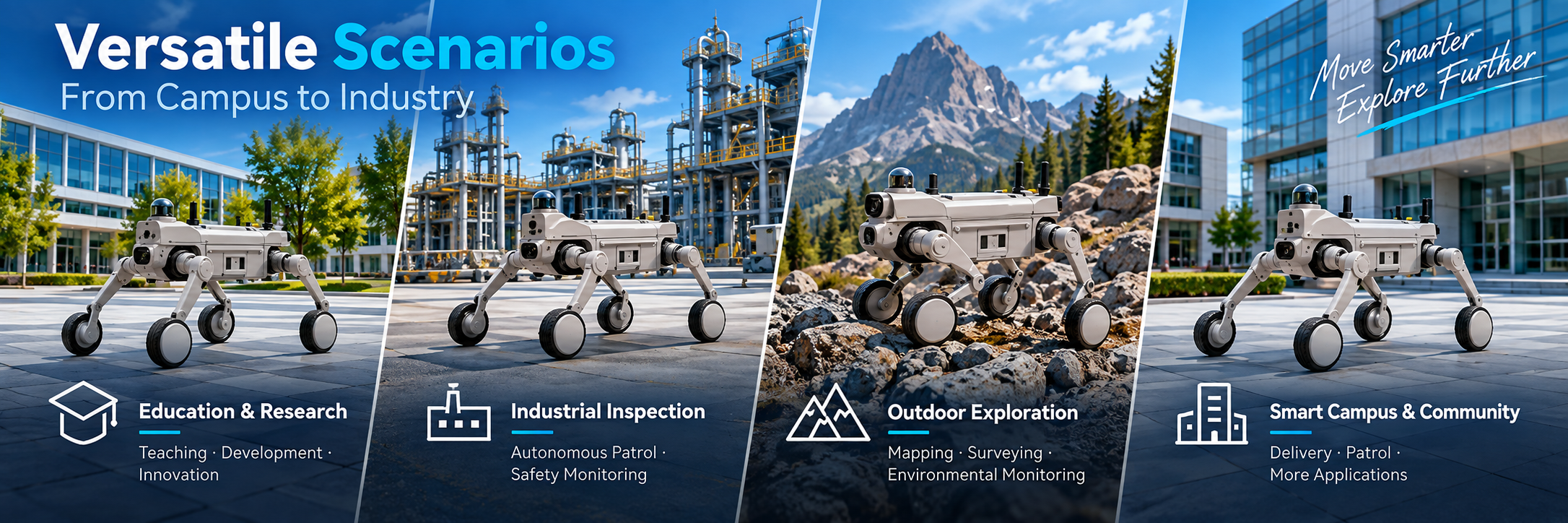

Gangbeng L1-W EDU education, industrial inspection, outdoor, and campus applications

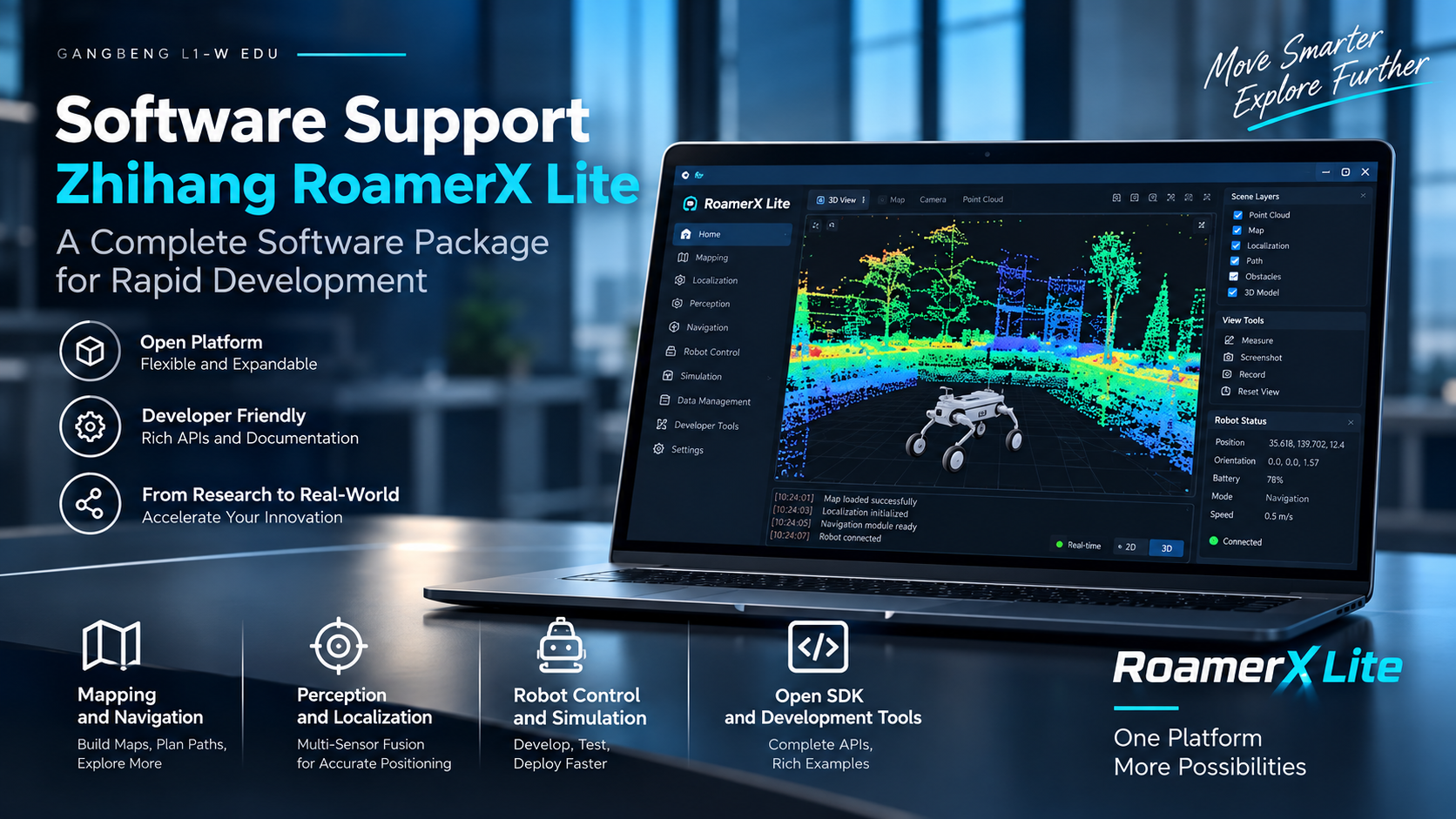

Zhihang RoamerX Lite mapping, navigation, localization, simulation, and development software

RFQ

Ask about Gangbeng L1-W EDU.

Send your target application, required payload, operating environment, quantity, and integration requirements. We can recommend the matching L1-W EDU configuration for embodied AI, autonomous navigation, education, research, or field deployment.

Compute, sensor, and communication configuration support
Mapping, navigation, perception, and robot control integration
Export-ready packaging and documentation
