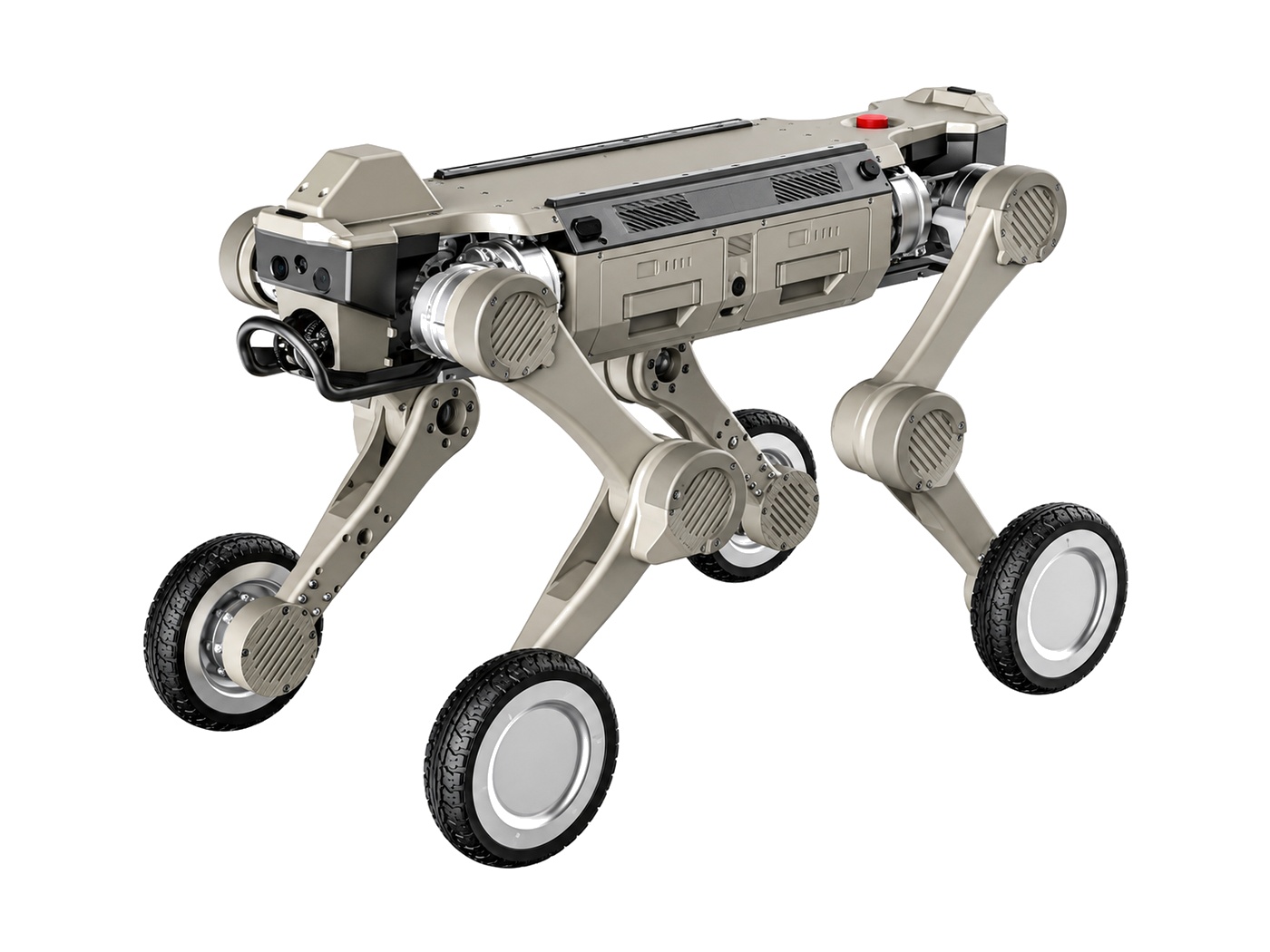

Tongchui M1 Pro Quadruped Robot

An enhanced task configuration built on the complete Tongchui M1 platform. M1 Pro adds intelligent UWB and laser-vision following, voice intercom and broadcast, local video storage, stealth mode, and remote wakeup for inspection, patrol, research, and public safety operations.

Tongchui M1 Pro

Technical Specifications

Base Capabilities: Includes all Tongchui M1 functions; view base model
Standing Dimensions: 930 x 480 x 620 mm
Weight: 41 kg
Pro Sensors: UWB follow module, microphone, and speaker
Storage: 512 GB TF card
Pro Software Functions: Voice intercom, recording and broadcast, UWB following, laser-vision following, local video storage and export, stealth mode, and remote wakeup
Stable Payload: 30 kg
Battery: 18.7 Ah, 54 V
Degrees of Freedom: 16 total; 3+1 per wheel-leg
Runtime: At least 5 h unloaded; at least 3.5 h at full load
Maximum Speed: 8 m/s
Standard Maximum Speed: 6 m/s
Maximum Slope: ±45°
Maximum Obstacle Height: 80 cm
Barrier Crossing: At least 50 cm high; barrier thickness up to 10 cm
Maximum Stair Height: 25 cm
Auxiliary Power: 5 V, 12 V, 24 V, and 48 V; at least 480 W
Battery System: Dual batteries with quick-swap and hot-swap support; no shutdown required
Communication Interfaces: 2 x Gigabit Ethernet, 2 x USB 3.0, and 1 x serial port
Protection Modes: Software and hardware emergency stop; low-battery and over-temperature alarms
Motion & Terrain: Stepping, rolling, crawling, multidirectional travel, and in-place rotation across gravel, asphalt, grass, sand, forest floor, and building rubble
Disturbance Recovery: Active balance under impact; automatic stand-up or protected fault state after a fall
Charging: Manual and automatic charging supported
Direction Switching: Front/rear operation, bidirectional vision, and in-place turnaround
Environment: -20°C to 55°C; IP67 protection
LiDAR: Front and rear 96-line units; 360° horizontal x 90° vertical FOV; at least 120 m coverage diameter
FPV Cameras: Front and rear wide-angle cameras; at least 8 MP
RTK Module: GNSS RTK for real-time robot positioning
Ultrasonic Sensors: Left and right obstacle sensing up to 3.5 m
Wireless Communication: Wi-Fi, Bluetooth, and RF; 500 to 1,000 m RF range

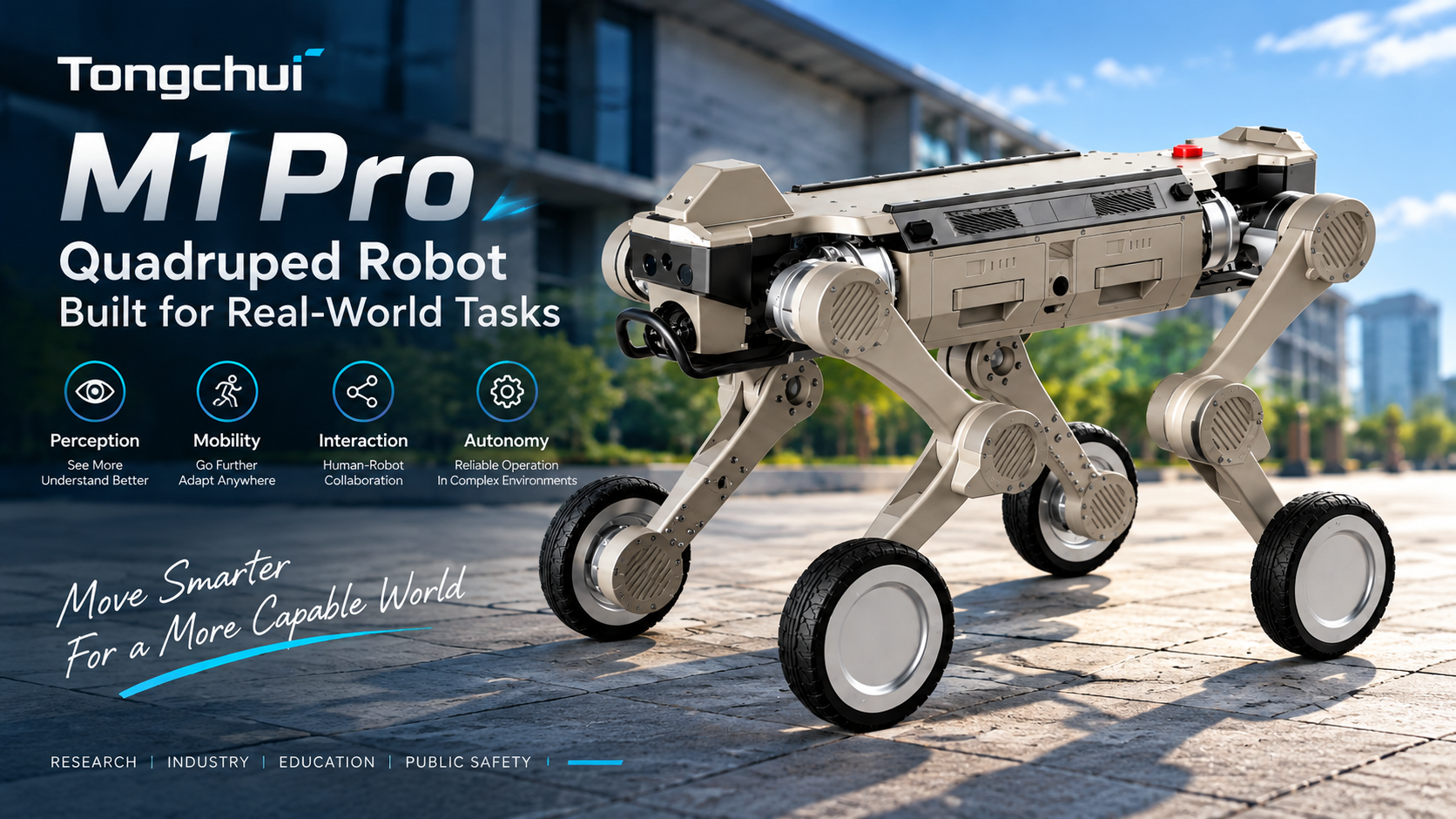

Tongchui M1 Pro quadruped robot overview

Tongchui M1 Pro UWB following, communication, storage, and remote wakeup functions

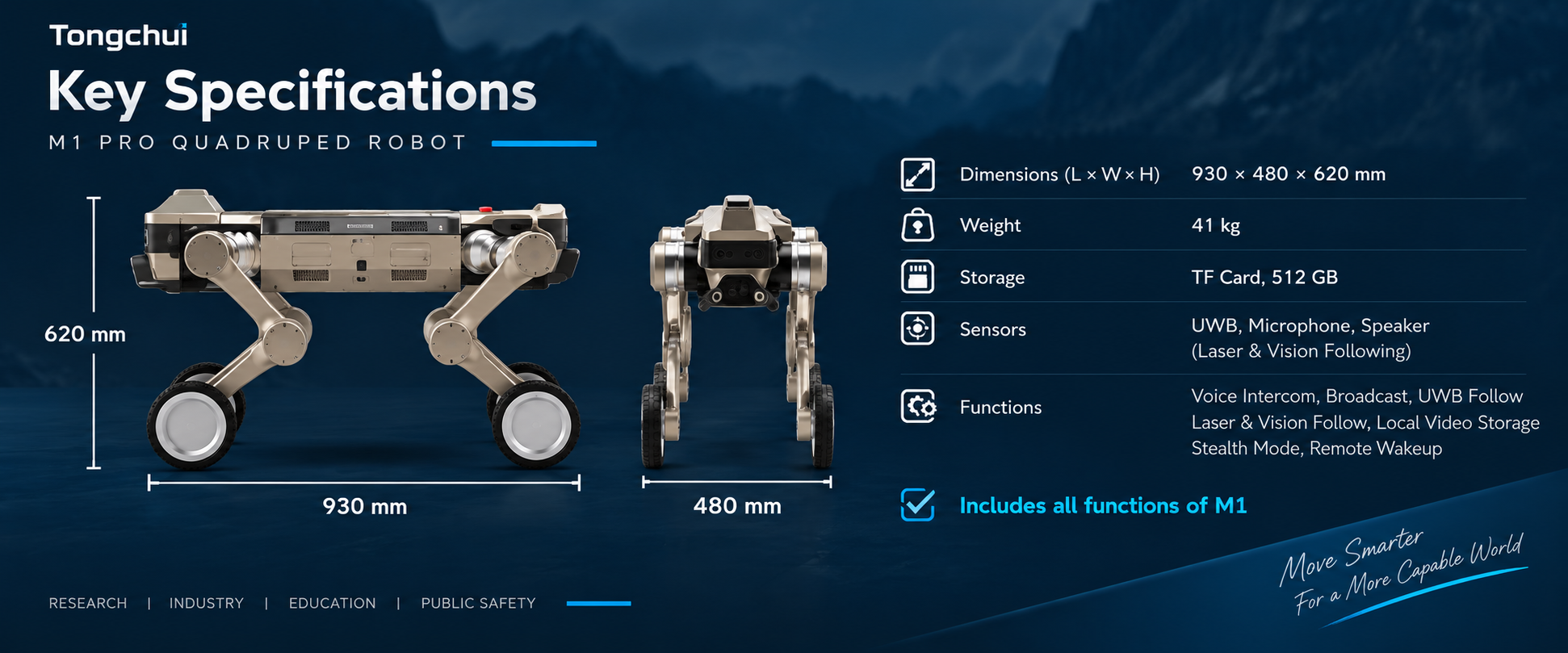

Tongchui M1 Pro dimensions, weight, sensors, storage, and software specifications

Tongchui M1 Pro research, inspection, outdoor, emergency, and campus applications

RFQ

Ask about Tongchui M1 Pro.

Send your target application, required payload, operating environment, quantity, and integration requirements. We can recommend the matching M1 Pro configuration for inspection, patrol, emergency response, or heavy-duty field robotics projects.

UWB and laser-vision following configuration
Audio, storage, and remote operation integration
Export-ready packaging and documentation
