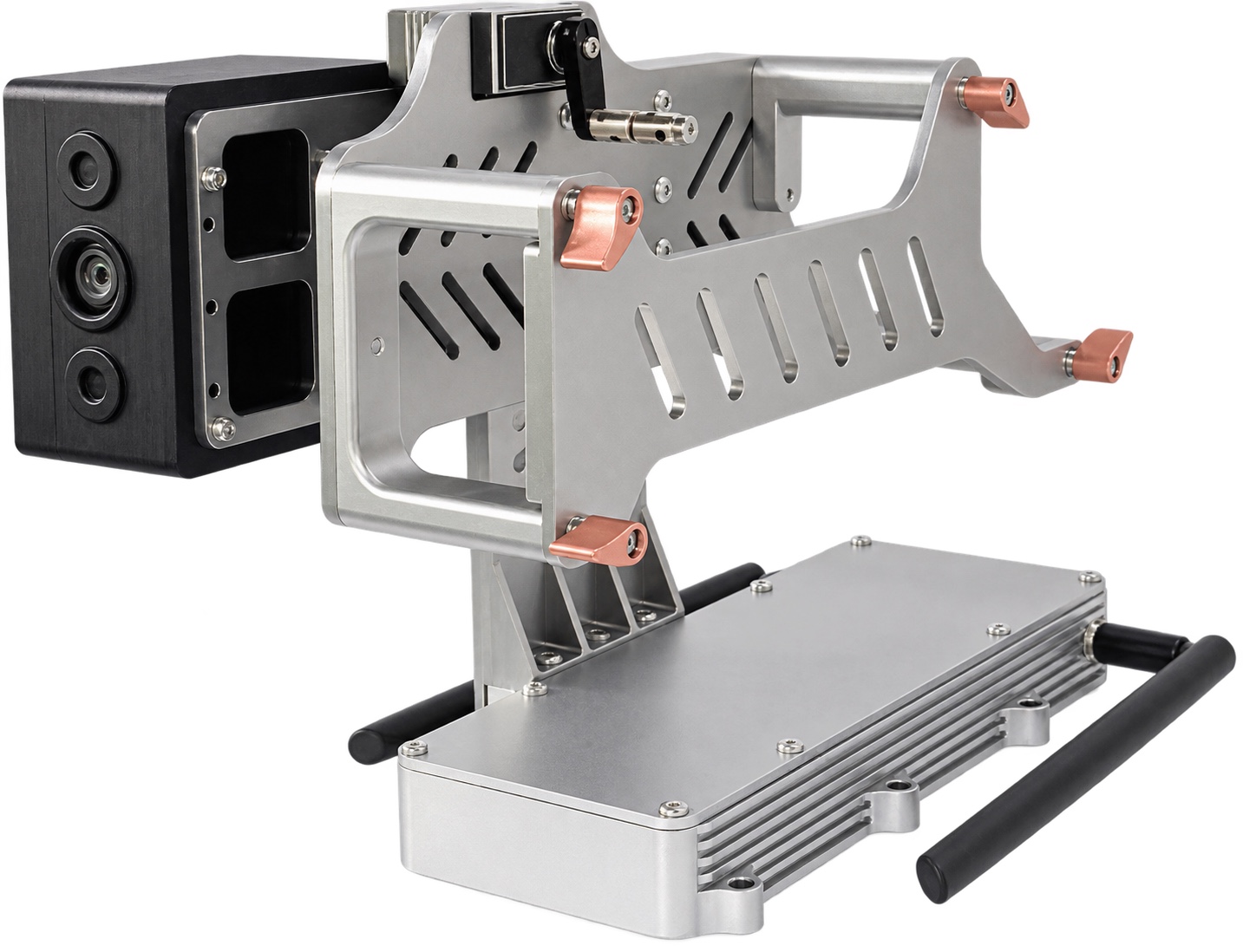

Ground Robot Payload Mount
Small Payload Robotic Dog Controller
A compact 3.2 kg mounting platform for quadruped robots. It integrates a first-view camera module, SBUS control, and RTSP video streaming for civil inspection, patrol, rescue support, and remote field operations.
Key Parameters
- Size
- Approx. 300 x 270 x 220 mm
- Weight
- Approx. 3200g
- Input Voltage
- 12V
- Control Method
- SBUS
- Image Sensor
- 1/2.9-inch CMOS
- Image Quality
- 1080P (1920 x 1080)
- Stream Protocol
- RTSP
- FOV
- Diagonal 90°, horizontal 80°
Application Fit
- First-view inspection camera mounting for quadruped robots
- Remote site patrol, facility inspection, and field monitoring
- Rescue support accessories, work lights, and sensor integration
- Quick replacement and maintenance for robot-mounted payloads
Integration Notes
The platform is designed for compact robot payload layouts and can be adapted for camera, sensor, lighting, and communication modules. Share your robot model, mounting space, power interface, and video output requirements, and we can recommend a matching configuration.
RFQ
Ask about this inspection mount.
Send your robot model, available mounting space, power interface, camera requirement, and target application. We can recommend the matching configuration for civil inspection or rescue support.
- Camera, sensor, and work-light integration support
- Robot payload mounting customization
- Export-ready packaging and documentation
