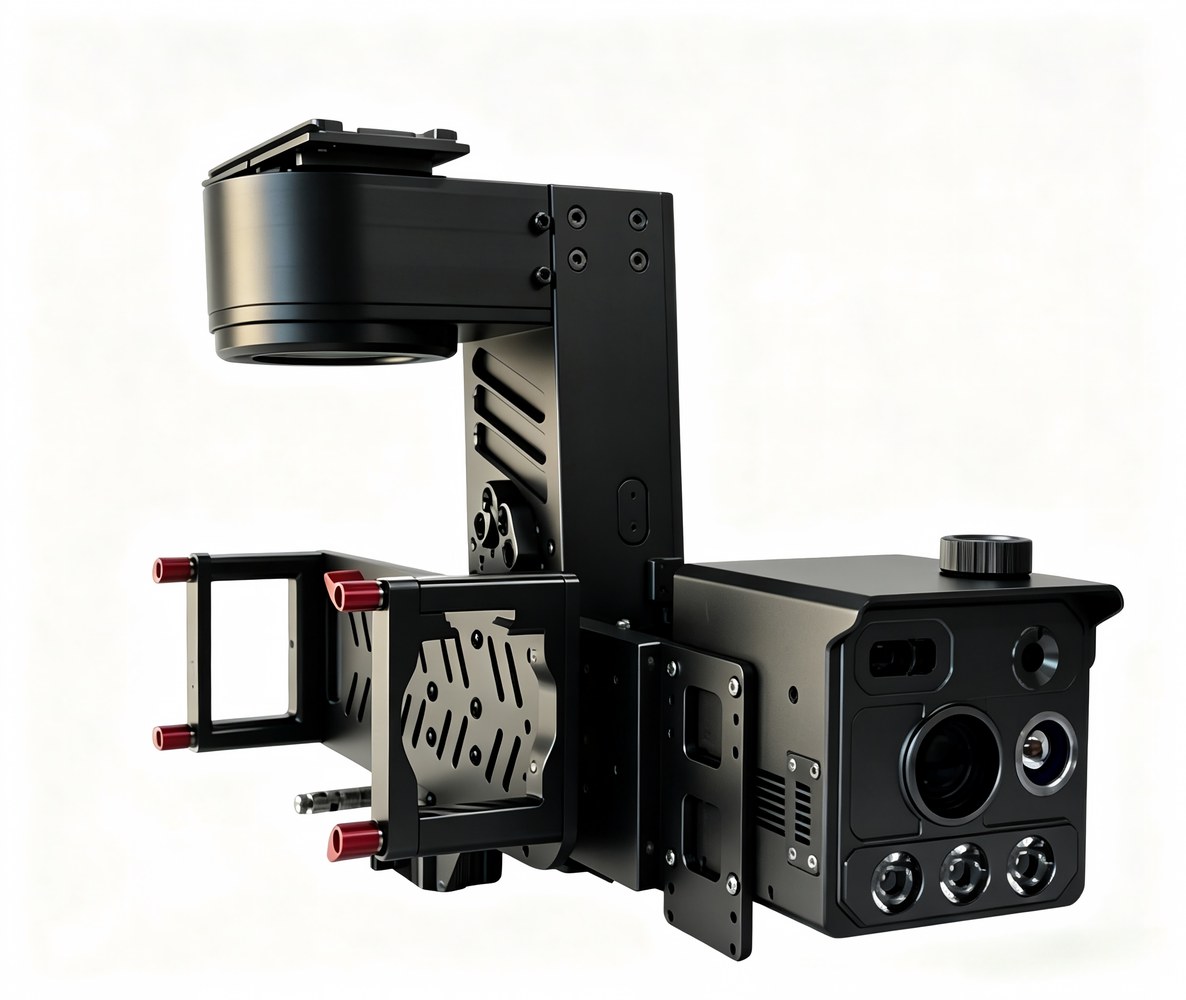

95-1/191/192 Controller Servo-Stabilized Version

A servo-stabilized controller platform for UAV and ground robot inspection payloads. It supports visible-light imaging, optical zoom, range measurement, auxiliary illumination, RTSP video output, and quick-release integration for field inspection and rescue support applications.

Mechanical Parameters

Dimensions: 340 x 220 x 300 mm
Net Weight: 4.6 kg
Material: Hardened aircraft aluminum and stainless steel
Mounting: Quick-release four-point positioning
Damping: Two-stage rebound damping system
Servo: 360° bidirectional high-torque servo
Platform: UAV / ground robot

Imaging and Control

Working Voltage: DC 24-60V
Power: Onboard platform power
Control: PWM / SBUS / TTL
Video: RTSP stream with integrated app display
Optical Lens: 4K visible imaging with 10x optical zoom
Calibration: Manual knob and app-based reticle adjustment
Linkage: Yaw and pitch dual-axis linkage

Inspection Functions

Inspection viewing distance up to 1000 m
Range measurement module from 10 m to 1000 m
Green alignment laser up to 500 m
Invisible night auxiliary illumination up to 500 m
Crosshair overlay with distance and status display
Object recognition support for field inspection workflows

Reliability Features

Automatic reset brushless servo actuation
Overload and over-current protection
False activation prevention and anti-static protection
Tool-free quick installation and removal
High stability, interference resistance, and repeatable use
No-load control distance up to 5 km, depending on platform link

Integration Notes

This servo-stabilized version is designed for UAV and ground robot payload integration where stable imaging, auxiliary illumination, and app-based visual display are required. Share your aircraft or robot model, payload bay size, power interface, video workflow, and control signal requirements, and we can recommend a matching configuration.

RFQ

Ask about this servo-stabilized version.

Send your UAV or robot model, available mounting space, power interface, video workflow, control signal, quantity, and destination market. We can recommend the matching inspection configuration.

UAV and ground robot mounting customization
Camera, sensor, illumination, and app-display integration
Export-ready packaging and documentation
